Buttweld fittings are pipe fittings used to connect sections of pipe by welding them together, offering a strong, leak-proof, and permanent joint. They are commonly used in high-pressure and high-temperature piping systems across industries such as oil & gas, power plants, petrochemicals, and shipbuilding. Buttweld fittings come in various types including elbows, tees, reducers, and caps, which allow for directional changes, branching, and diameter transitions in the piping layout. These fittings are manufactured to ASME B16.9 and B16.28 standards and are available in materials like carbon steel, stainless steel, and alloy steel for compatibility with a wide range of applications.

Types of Butt weld Pipe Fittings

Image 1

Carbon Steel

Image 2

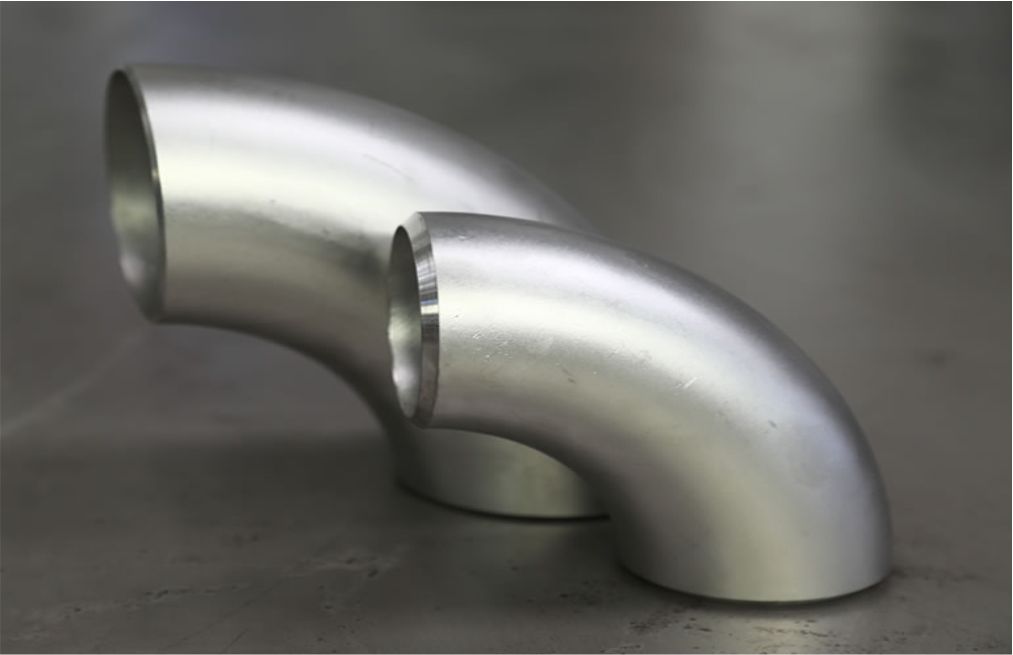

Stainles Steel

Image 3

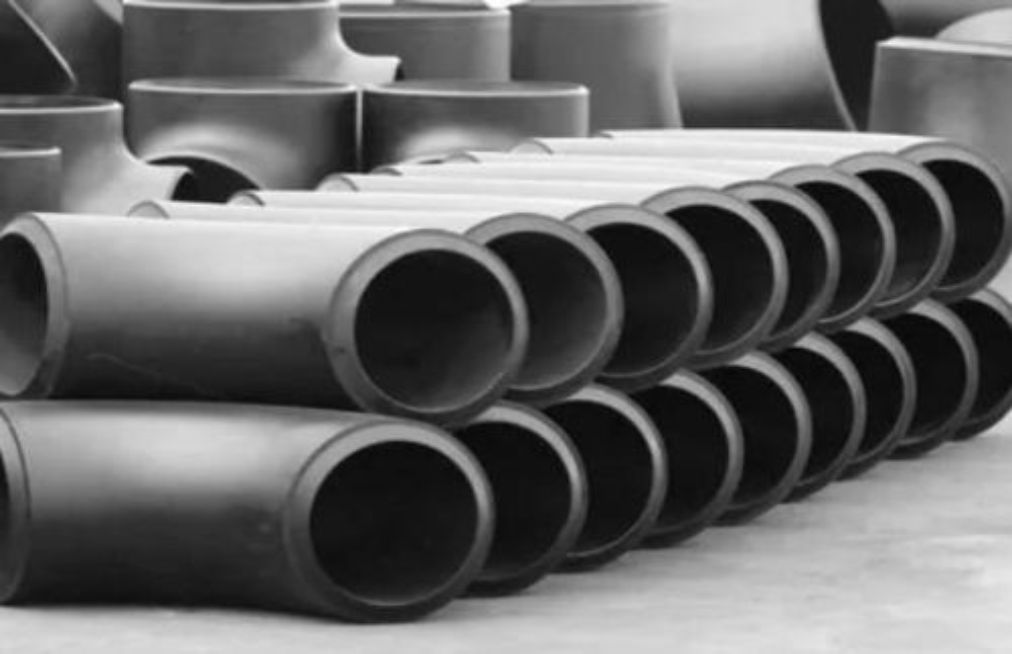

Alloy Steel

Stainless & Duplex Steel

Range 15 NB UP TO 1200 NB IN SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS
Form Seamless & Welded, Long Radius & Short Radius Elbow 90°, Long Radius Elbow 45°, Long Radius & Short Radius Elbow 180° (Return Bend), Reducing Elbow, Equal Tee, Unequal Tee, Crosses, Concentric Reducer, Eccentric Reducer, Long Stubend, Short Stubend, Coller, Pipe Cap, Long Radius Bends R = 3D, 5D, 6D, 8D, 10D & 20D in 15°, 30°, 60° & 90°, Drawing Based Butt Weld Fitting (Customised).
Stainless Steel Grades ASTM / ASME SA 403 GR WP "S" / "W" / "WX"
304, 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347H
Duplex Steel Grades ASTM / ASME SA 815
UNS NO. S31803, S32205, S32550, S32750, S32760

Carbon & Alloy Steel

Range 15 NB UP TO 1200 NB IN SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS
Form Seamless & Welded, Long Radius & Short Radius Elbow 90°, Long Radius Elbow 45°, Long Radius & Short Radius Elbow 180° (Return Bend), Reducing Elbow, Equal Tee, Unequal Tee, Crosses, Concentric Reducer, Eccentric Reducer, Long Stubend, Short Stubend, Coller, Pipe Cap, Long Radius Bends R = 3D, 5D, 6D, 8D, 10D & 20D in 15°, 30°, 60° & 90°, Drawing Based Butt Weld Fitting (Customised)
Carbon Steel ASTM / ASME A 234 WPB, WPC, ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Nickel & Copper Alloy

Range 15 NB UP TO 1200 NB IN SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS
Form Seamless / Erw / Welded in Round & Square
Nickel Alloy ASTM / ASME SB 163 UNS 2200 (NICKEL 200), ASTM / ASME SB 163 UNS 2201 (NICKEL 201), ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400), ASTM / ASME SB 464 UNS 8020 (ALLOY 20 / 20 CB 3), ASTM / ASME SB 704/705 UNS 8825 INCONEL (825), ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600), ASTM / ASME SB 167 UNS 6601 (INCONEL 601), ASTM / ASME SB 704 /705 UNS 6625 (INCONEL 625), ASTM / ASME SB 619/622/626 UNS 10276 (HASTELLOY C 276)
Copper Alloy ASTM / ASME SB 111 UNS NO. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, ASTM / ASME SB 466 UNS NO. C 70600 (CU-NI-90/10), C 71500 (CU-NI-70/30)

Nickel & Copper Alloy

Grades Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Standards ASTM / ASME SB 336 & XXS
Types Bend (Long & Short), Elbow (180° , 90° & 45°), Tee (Equal & Unequal), Reducer (Concentric & Eccentric), CAP, Stub end (Long & Short), Nipple (Barrel)

Inocnol

Grades Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Range 15 NB UP TO 600 NB IN SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS
Types Elbow 90°, Elbow 45°, Elbow 180°, long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, crosses, short/long neck stub-ends

Incoloy

Grades Incoloy 800, Incoloy 825, Incoloy 925, Incoloy A-286, Incoloy DS
Standards ASTM B366
Types Bend (Long & Short), Elbow (180°, 90° & 45°), Tee (Equal & Unequal), Reducer (Concentric & Eccentric), CAP, Stub end (Long & Short), Nipple (Barrel)

Monel

Grades Monel 400, Monel K500
Range 1/2" NB to 36" NB
Types Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends

Titanium

Grades Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23
Titanium Buttweld Fitting Range 15 NB To 600 NB in Sch.: 5, 10, 20, 40, 80, 120, 160, XS, XXS
Types Bend (Long & Short), Elbow (180°, 90° & 45°), Tee (Equal & Unequal), Reducer (Concentric & Eccentric), CAP, Stub end (Long & Short), Nipple (Barrel)

Specification of Buttweld Fittings

Specifications ASTM A403 / ASME SA403
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
Schedule SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type Seamless / ERW / Welded / Fabricated
Thickness 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.

Buttweld Pipe Fittings Dimensional Standard ANSI B-169, B-16.28

Types for Buttweld Fittings

Image 1

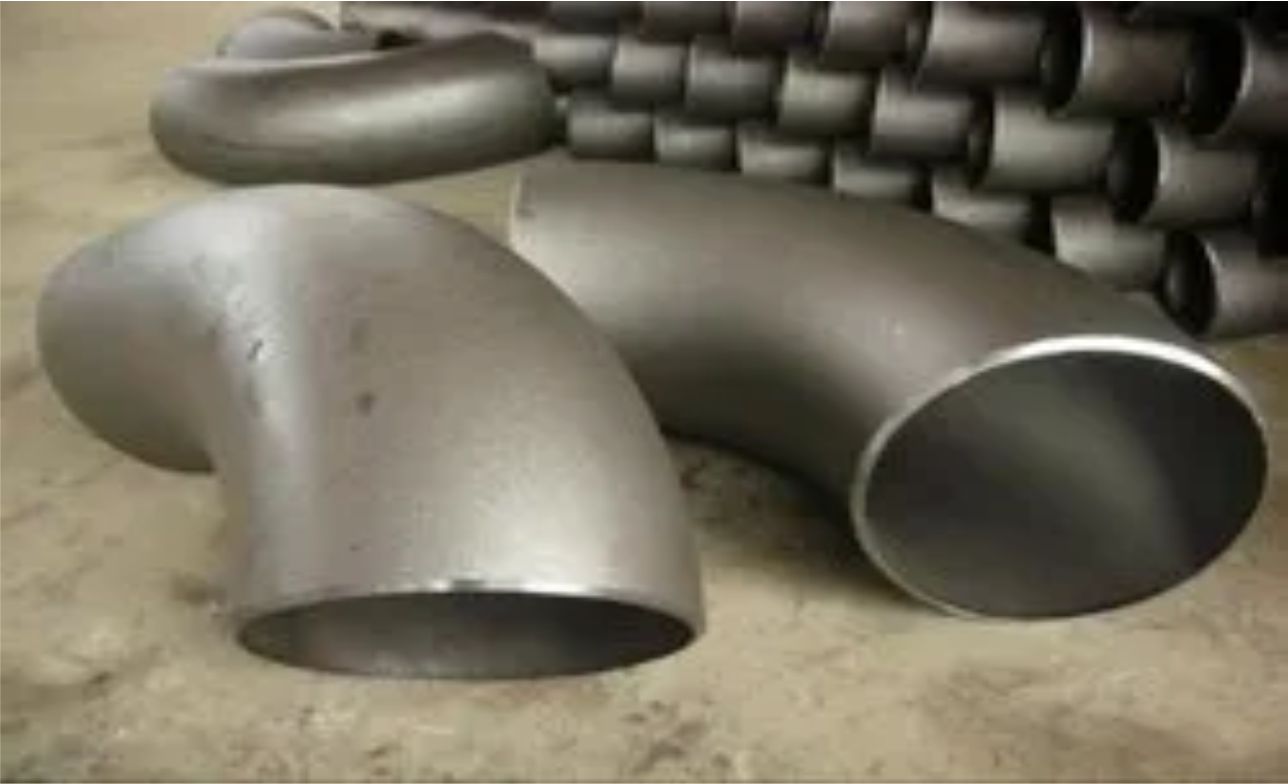

90° Elbow

Image 2

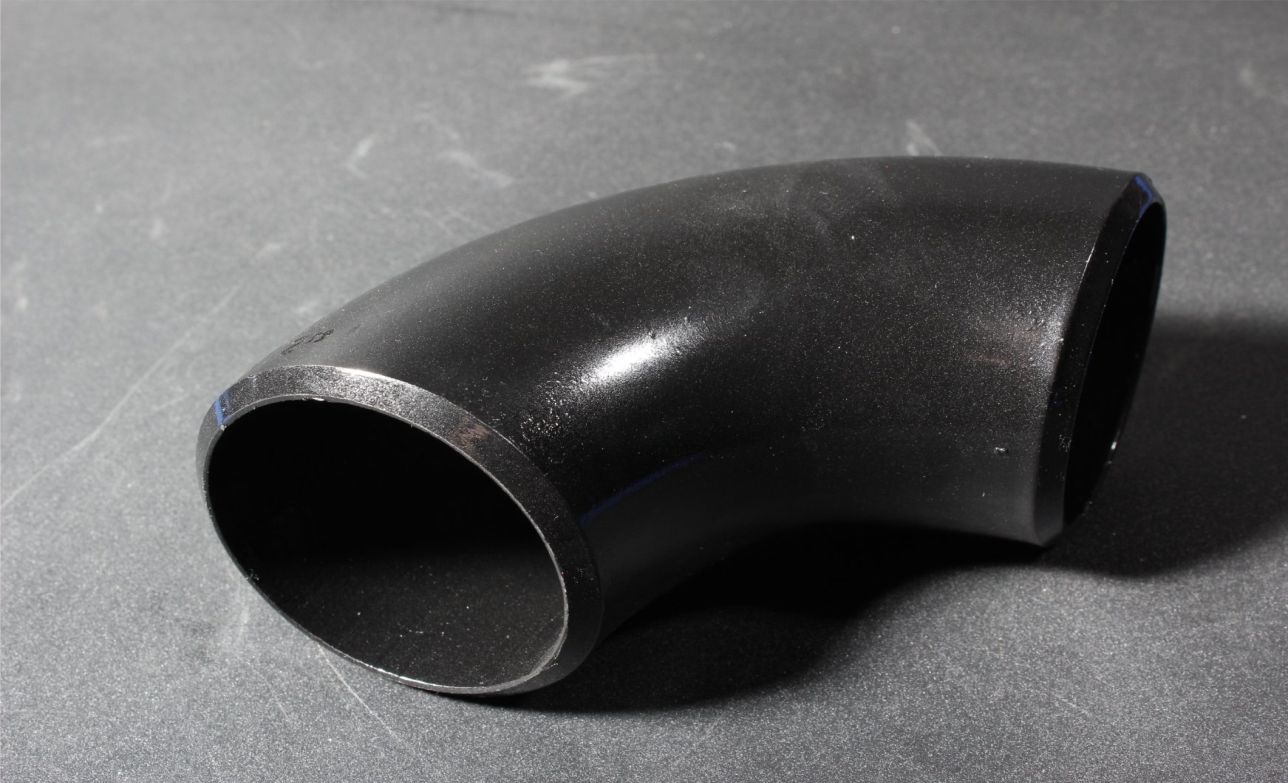

45° Elbow

Image 3

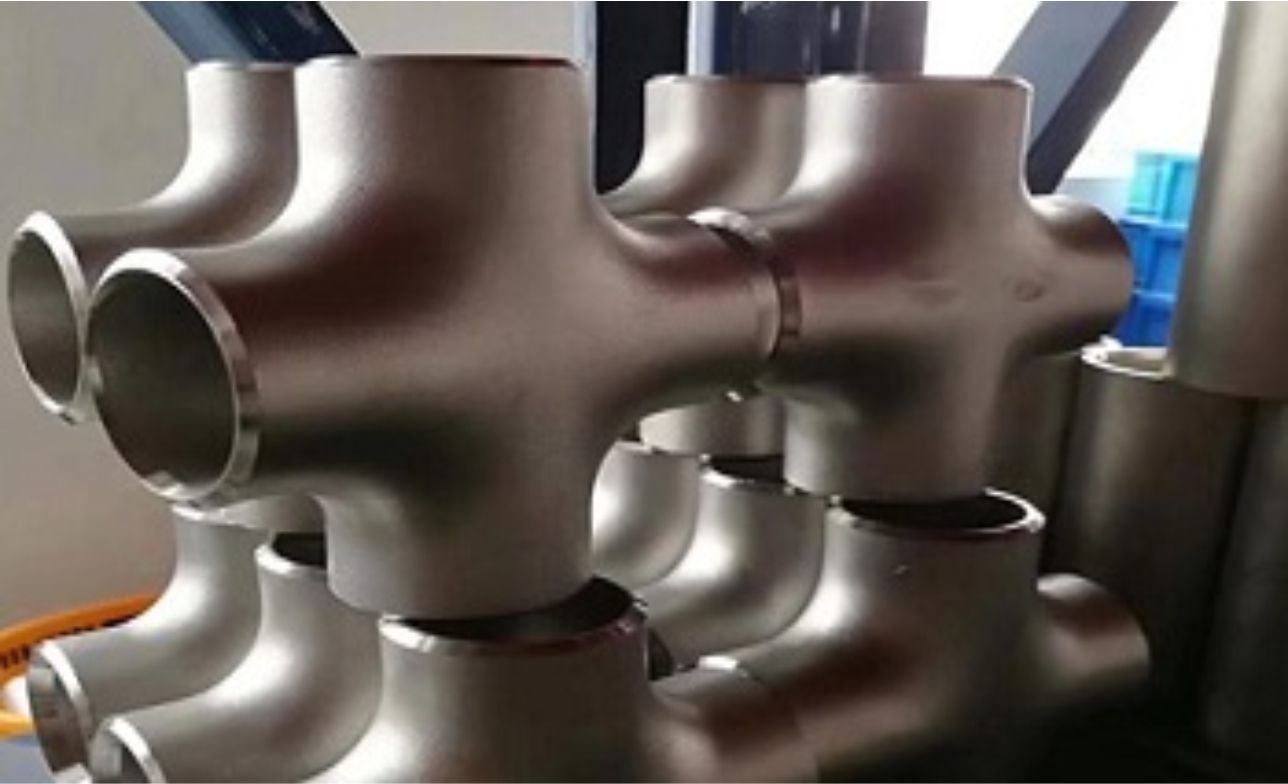

Crosses

Image 3

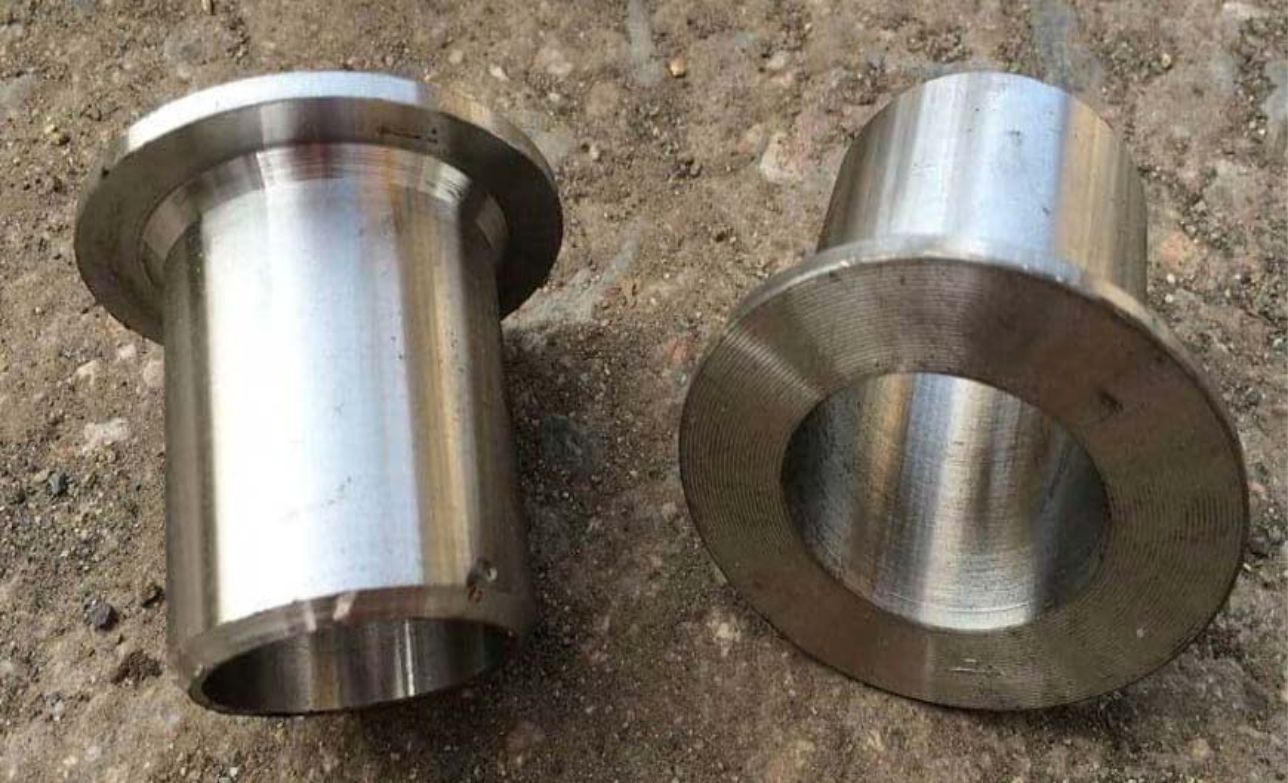

Short Pattern Stub End

Image 3

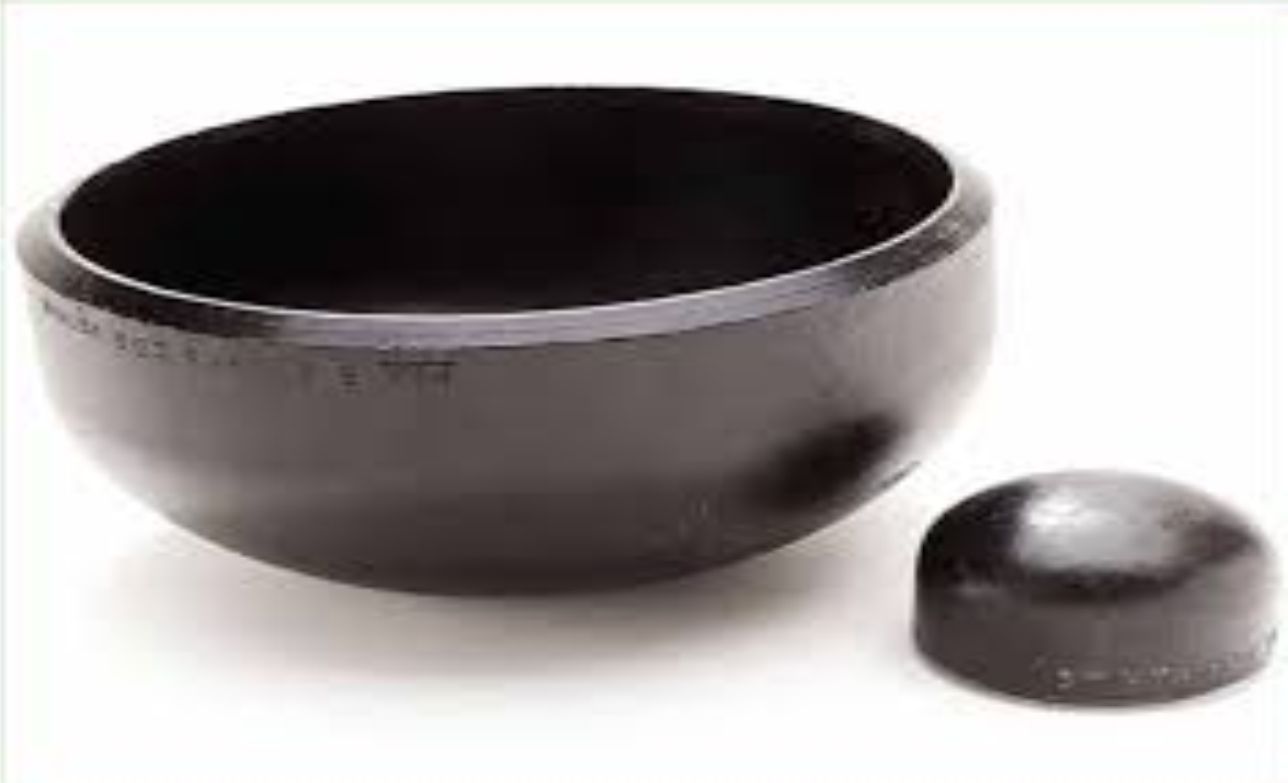

Carbon Steel Caps

Image 3

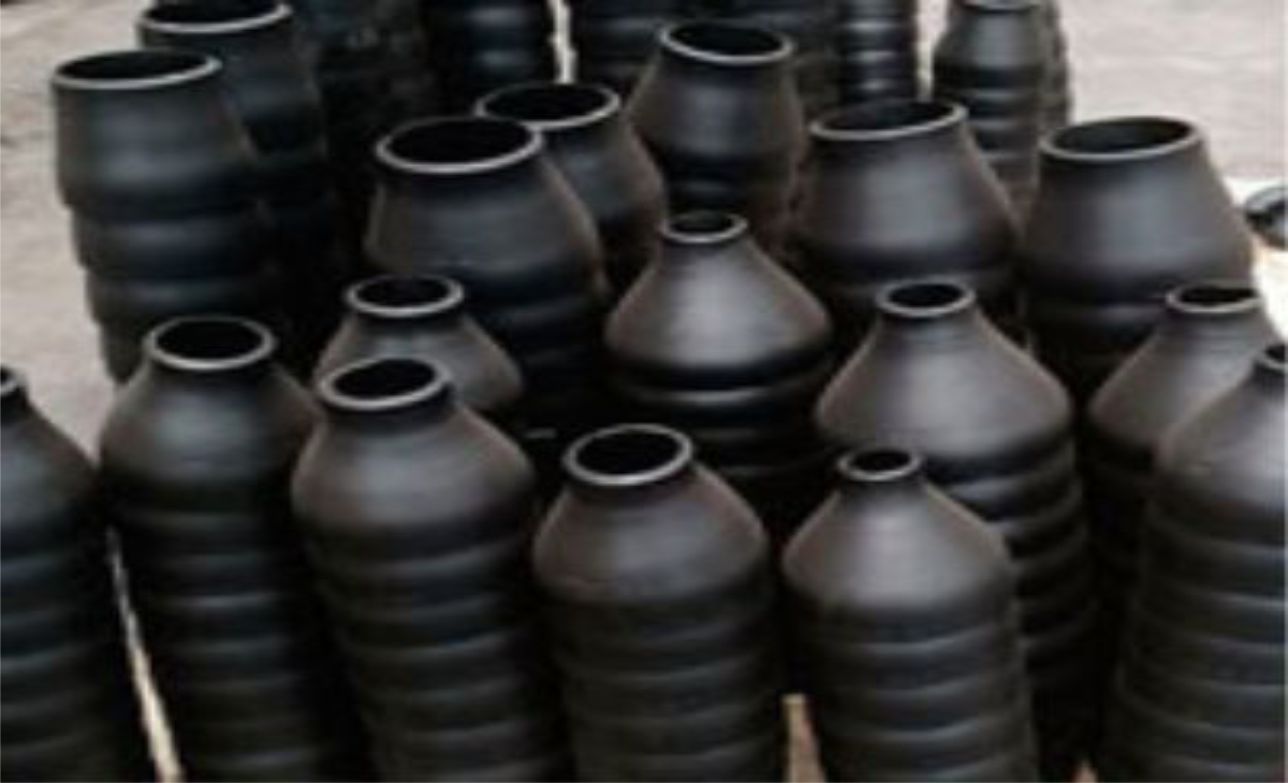

Reducer
