Flanges are mechanical connectors used to join pipes, valves, pumps, and other equipment within a piping system. They play a vital role in providing easy access for cleaning, inspection, or modification of the pipeline. Flanges come in various types such as weld neck, slip-on, blind, socket weld, and threaded, each suited for specific applications and pressure ratings. Typically manufactured from carbon steel, stainless steel, and high-performance alloys, flanges are designed to meet international standards like ASME, DIN, EN, and others for reliable and leak-proof connections.

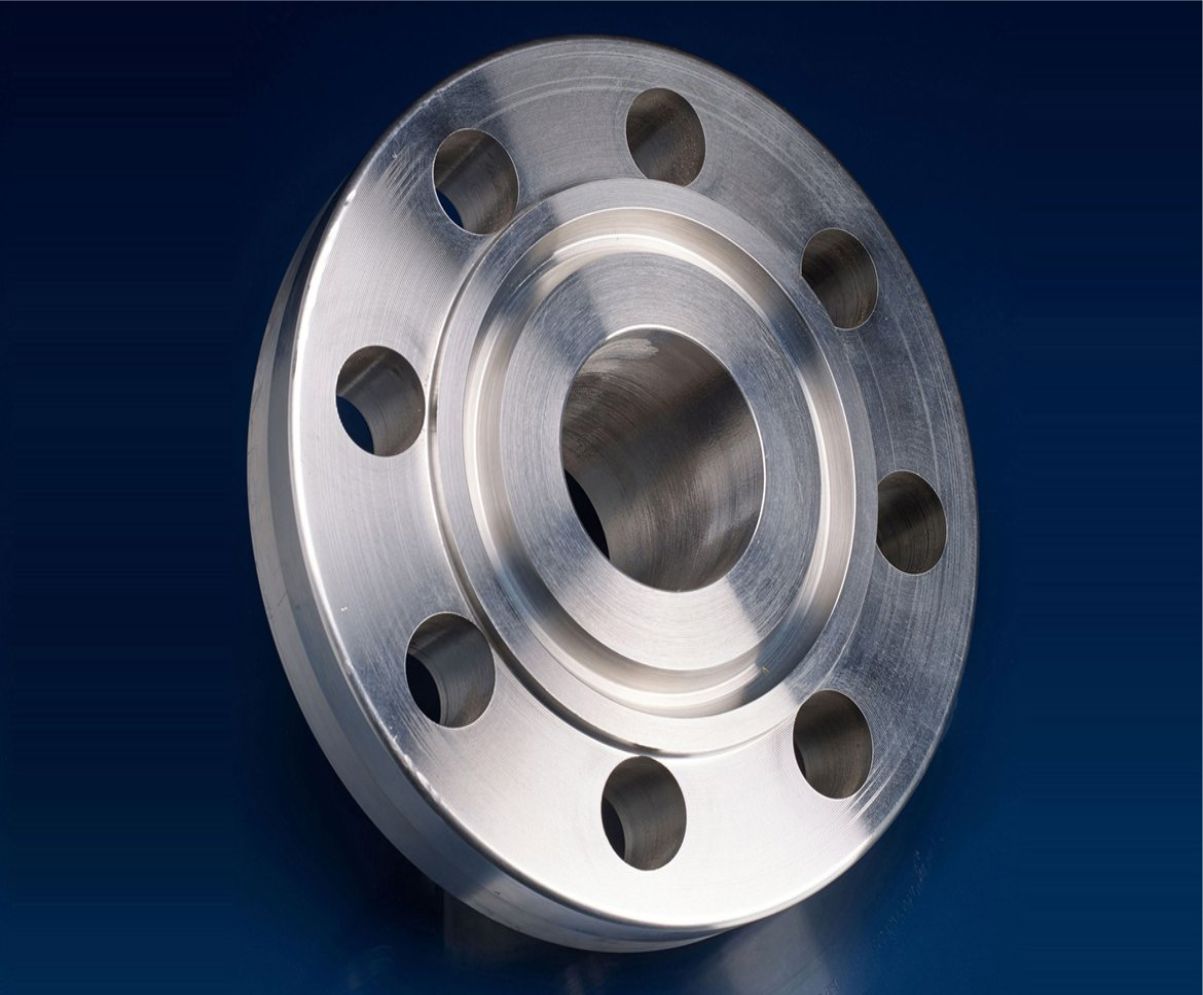

Flanges Come In Various Types

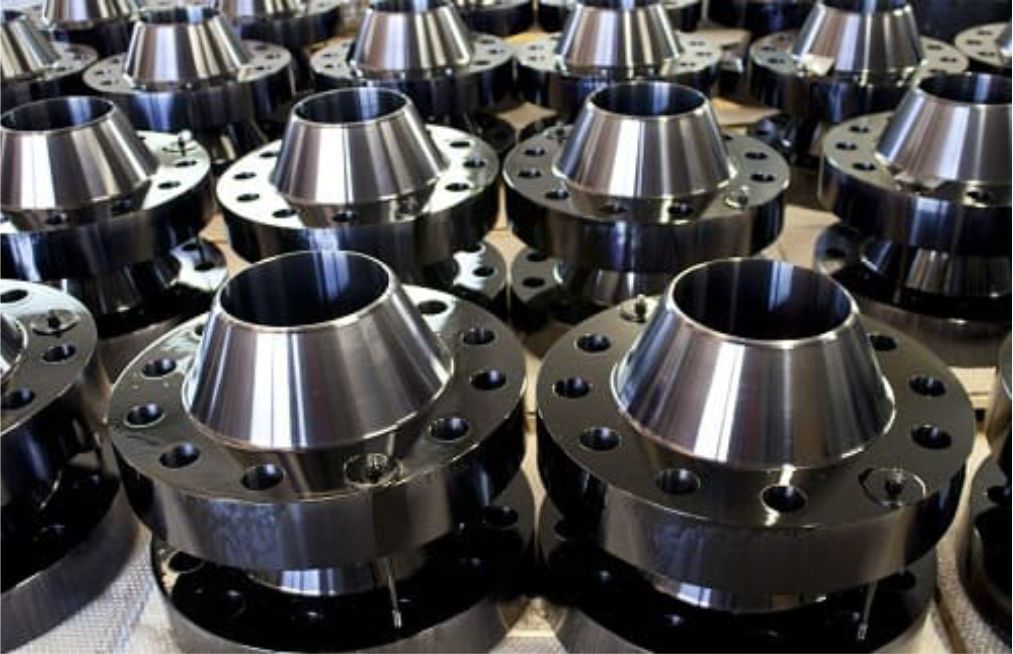

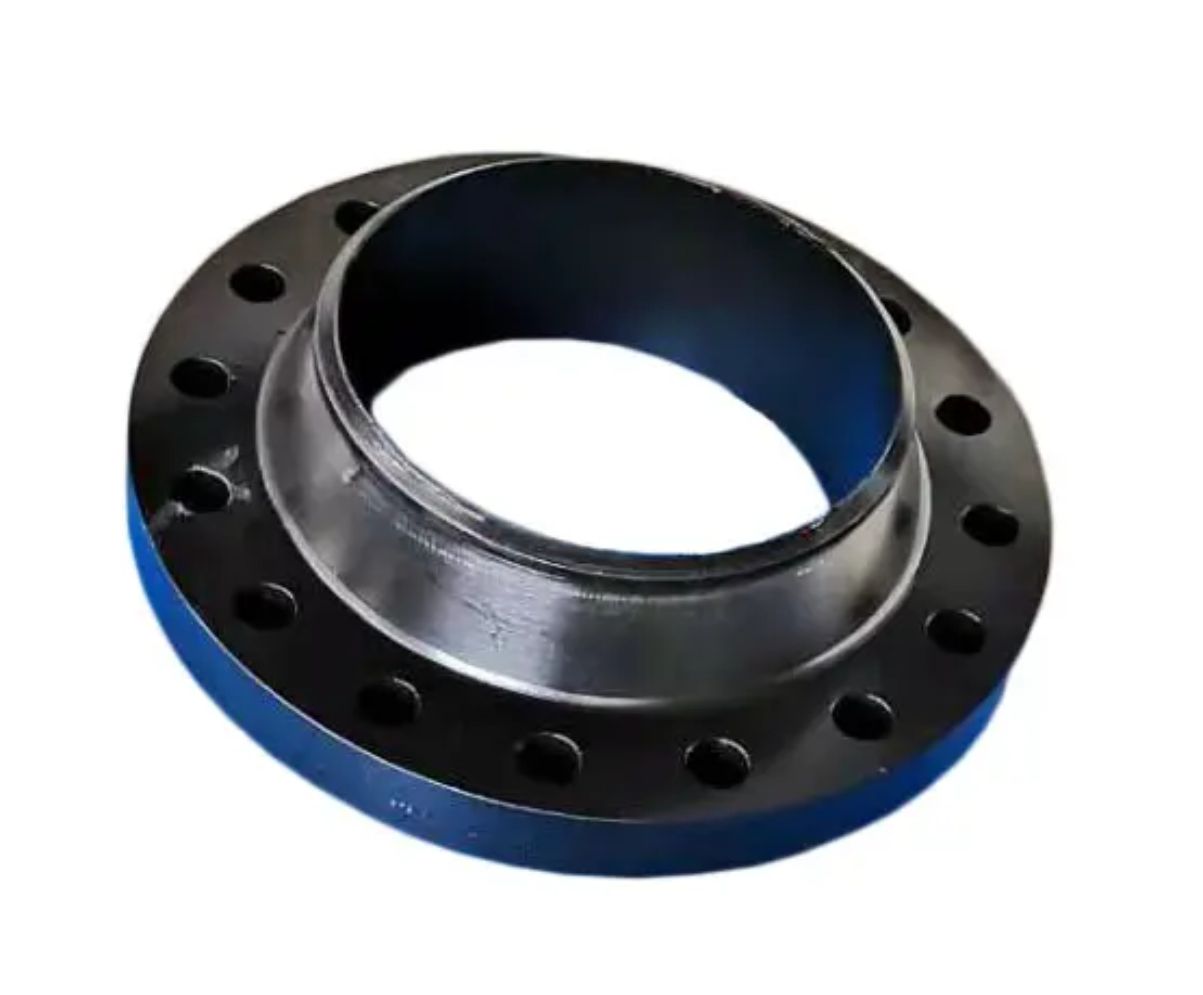

Carbon Steel

Duplex Steel FLange

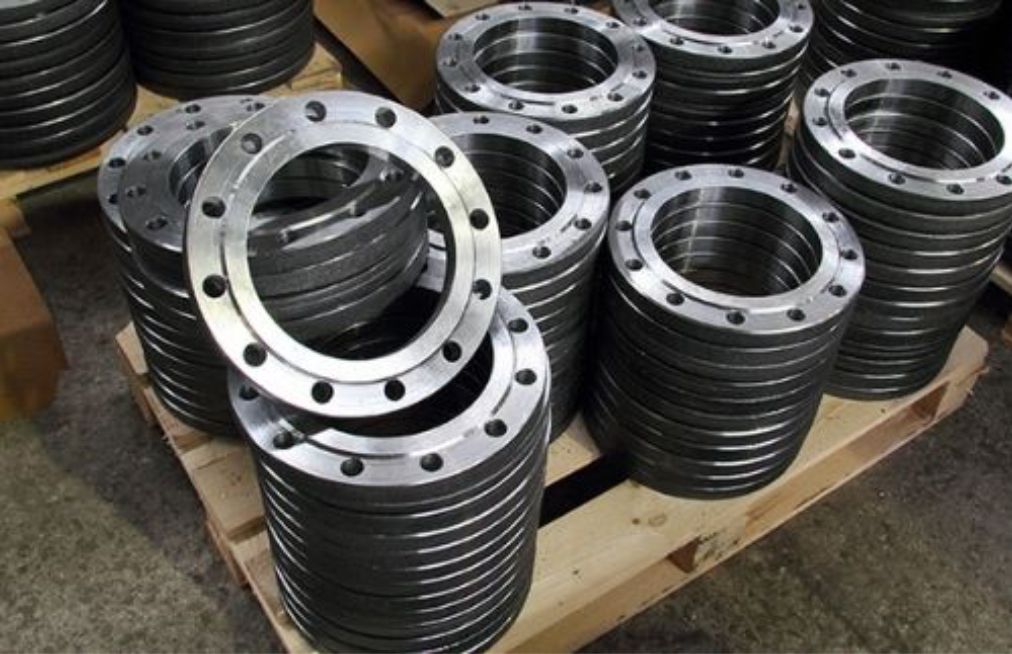

Alloy Steel Flange

Stainless & Duplex Steel

Category	Details
Range	15 NB UP TO 600 NB in: 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS TABLE: 2.5, 6, 10, 16, 25, 40, 64, 160, 320, 400
Form	Slip On, Socket Weld, Blind, Lapped, Screwed, Weld Neck, Reducing, Spectacle, Slip On Boss, Plate, Plate Blank, Screwed Boss
Stainless Steel	ASTM / ASME SA 182 F: 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347H
Duplex Steel	ASTM / ASME SA 182 F: 44, F45, F51, F53, F55, F60, F61

Carbon & Alloy Steel

Category	Details
Range	15 NB UP TO 600 NB in: 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS TABLE: 2.5, 6, 10, 16, 25, 40, 64, 160, 320, 400
Form	Slip On, Socket Weld, Blind, Lapped, Screwed, Weld Neck, Reducing, Spectacle, Slip On Boss, Plate, Plate Blank, Screwed Boss
Carbon Steel	ASTM / ASME A 105, ASTM / ASME A 350 LF2
Alloy Steel	ASTM / ASME A 182 GR: F5, F9, F11, F12, F22, F91

Nickel & Copper Alloy

Category	Details
Range	15 NB UP TO 600 NB in: 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS TABLE: 2.5, 6, 10, 16, 25, 40, 64, 160, 320, 400
Form	Slip On, Socket Weld, Blind, Lapped, Screwed, Weld Neck, Reducing, Spectacle, Slip On Boss, Plate, Plate Blank, Screwed Boss
Nickel Alloy	ASTM / ASME SB 564: UNS 2200 (Nickel 200), UNS 4400 (Monel 400), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C276) ASTM / ASME SB 160: UNS 2201 (Nickel 201) ASTM / ASME SB 472: UNS 8020 (Alloy 20 / 20 CB 3)
Copper Alloy	ASTM / ASME SB 61: UNS C92200 ASTM / ASME SB 62: UNS C83600 ASTM / ASME SB 151: UNS 70600, 71500, C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30) ASTM / ASME SB 152: UNS C10100, C10200, C10300, C10800, C12000, C12200

Hastelloy

Category	Details
Grades	Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Size	1/2"NB to 12"NB
Standard	ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Types	Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features	Durability Corrosion resistance Dimensional accuracy High strength Excellent finish

Inconel

Category	Details
Grades	Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Size	1/2 inch - 48 inch (15mm - 1200mm)
Standard	ANSI/ASME B16.5, ANSI B16.47, API, DIN, JIS, BS
Types	Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features	Durability Corrosion resistance Dimensional accuracy High strength Excellent finish

Monel

Category	Details
Grades	Monel 400, Monel K500
Range	1/2" NB to 60" NB
Types	Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features	Durability Corrosion resistance Dimensional accuracy High strength Chemical resistance Excellent finish

Titanium

Category	Details
Material	Titanium
Grade	Gr2, Gr5, Gr7, Gr9
Standards	DIN, ASTM, BS
Application	Bicycles, Motors, Chemicals
Strength	Superior Quality, Fast Delivery, Competitive Price, Humanized After-Sales Service
Features	Low Density Rustless Good Antiwear Property High Strength
Size	Set the size according to the customers' requirements

Common Type Of Carbon Steel Flange Coating

Types Of Coating	Temperature	Wall Thickness	Color Of Coating
Anti rust coating	10°C – 30°C	150 μm outdoors and 125 μm indoors	Mid grey, red oxide, and black
PE coating	Up to 80 °C	1.8 mm to 4.7 mm	Black or milky-white
PTFE coating	+260°C	10 to 100 microns	Black, grey
Zinc coating	420°C to 650°C	Between 1.4 and 3.9 mils	Dull gray
FBE coating	225° to 245°C	Between 250 and 500 micrometers	Green/Aqua, Blue and Red

Manufacturing Standards Of CS Forged Steel Flanges

Standard	Class	Size In Inch	Application
DIN flange	PN6 To PN40	1/2″ To 48 Inch	High & low pressure
Australian flange	150 to 2500	1/2″ To 48 Inch	Low pressure
Korean flange	150 to 300	1/2″ To 80 Inch	–
Japanese standard flange	150 to 2500	3/8 to 60 Inch	Low pressure
EN 1092-1/2	PN 2.5 to PN 400	3/8″ to 80 Inch	Lower pressure
BS 3293	150 to 600	26″ To 48 Inch	Lower pressure
MSS SP 44	150 to 900	22″ To 48 Inch	High pressure
Awwa C207	Class B/D/E/F	4″ To 144 Inch	High pressure
ASME B16.5	150 to 2500	1/4″ to 24 Inch	High pressure
ASME B16.36	300 to 2500	1/4″ to 24 Inch	High pressure
ASME B16.47	150 to 900	26″ to 60 Inch	High pressure
ASME B16.48	150 to 2500	1/4″ to 24 Inch	High & low pressure

CS Steel Flange Carbon Content

High Carbon	Ultra High Carbon	Low Carbon	Medium Carbon
0.8–2.0%	1.25% to 2.0%	0.005% to 0.3%	0.3 to 0.8%

Class 150 Carbon Steel Flange Pressure Rating

Temperature (°F)	Class 150 (psi)
-20 to 100	285
200	260
300	230
400	200
500	170
600	140
650	125
700	110
750	95
800	80
850	65
900	50
950	35
1000	20

Carbon Steel 300# Flange Rating

Temperature (°F)	Class 300 (psi)
-20 to 100	740
200	680
300	655
400	635
500	605
600	570
650	550
700	530
750	505
800	410
850	320
900	230
950	135
1000	85

600# carbon steel flange rating

Temperature (°F)	Class 600 (psi)
-20 to 100	1,480
200	1,360
300	1,310
400	1,265
500	1,205
600	1,135
650	1,100
700	1,060
750	1,015
800	825
850	640
900	460
950	275
1000	170

Specification Of Flanges

Category	Details
Specification	ASTM A182 / ASME SA182
Dimension Standard	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size	1/2" (15 NB) to 48" (1200 NB)
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Flange Face Type	Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges	DIN 2527, 2566, 2573, 2576, 2641, 2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637, 2638, 2673
JIS Flanges	JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges	BS4504 PN 6, PN 10, PN 16, PN 25, PN 40, PN 64, PN 100, PN 160, PN 250, BS 10, BS Table D, E, F, H

Specifications of Stainless Steel Flanges

Flange Standard	Flange Type	Pressure Class / Rating
ASME B16.5	Weld Neck, Slip-On, Socket Weld, Threaded, Lap Joint, Blind, Orifice	Class 150, 300, 400, 600, 900, 1500, 2500
ASME B16.47 Series A/B	Weld Neck, Blind	Class 75, 150, 300, 400, 600, 900
MSS SP-44	Weld Neck, Blind	Class 150 to 900
API 6A	Weld Neck, Blind, Threaded, RTJ	2000, 3000, 5000, 10000, 15000 psi
EN 1092-1	Weld Neck (Type 11), Slip-On (Type 01), Blind (Type 05), Threaded (Type 13), Lap Joint (Type 02)	PN 6, 10, 16, 25, 40, 64, 100, 160, 250, 400
DIN 2630–2638	Weld Neck	PN 6 to PN 400
BS 4504	Weld Neck, Slip-On, Blind, Threaded	PN 6, 10, 16, 25, 40
JIS B2220	Weld Neck, Slip-On, Blind, Threaded, Socket Weld	5K, 10K, 16K, 20K, 30K, 40K

Flanges

Flanges

Flanges Come In Various Types

Carbon Steel

Duplex Steel FLange

Alloy Steel Flange

Stainless & Duplex Steel

Carbon & Alloy Steel

Nickel & Copper Alloy

Hastelloy

Inconel

Monel

Titanium

Common Type Of Carbon Steel Flange Coating

Manufacturing Standards Of CS Forged Steel Flanges

CS Steel Flange Carbon Content

Class 150 Carbon Steel Flange Pressure Rating

Carbon Steel 300# Flange Rating

600# carbon steel flange rating

Specification Of Flanges

Specifications of Stainless Steel Flanges

Different Types of Flanges and Their UsesBlog

Weld Neck Flamge

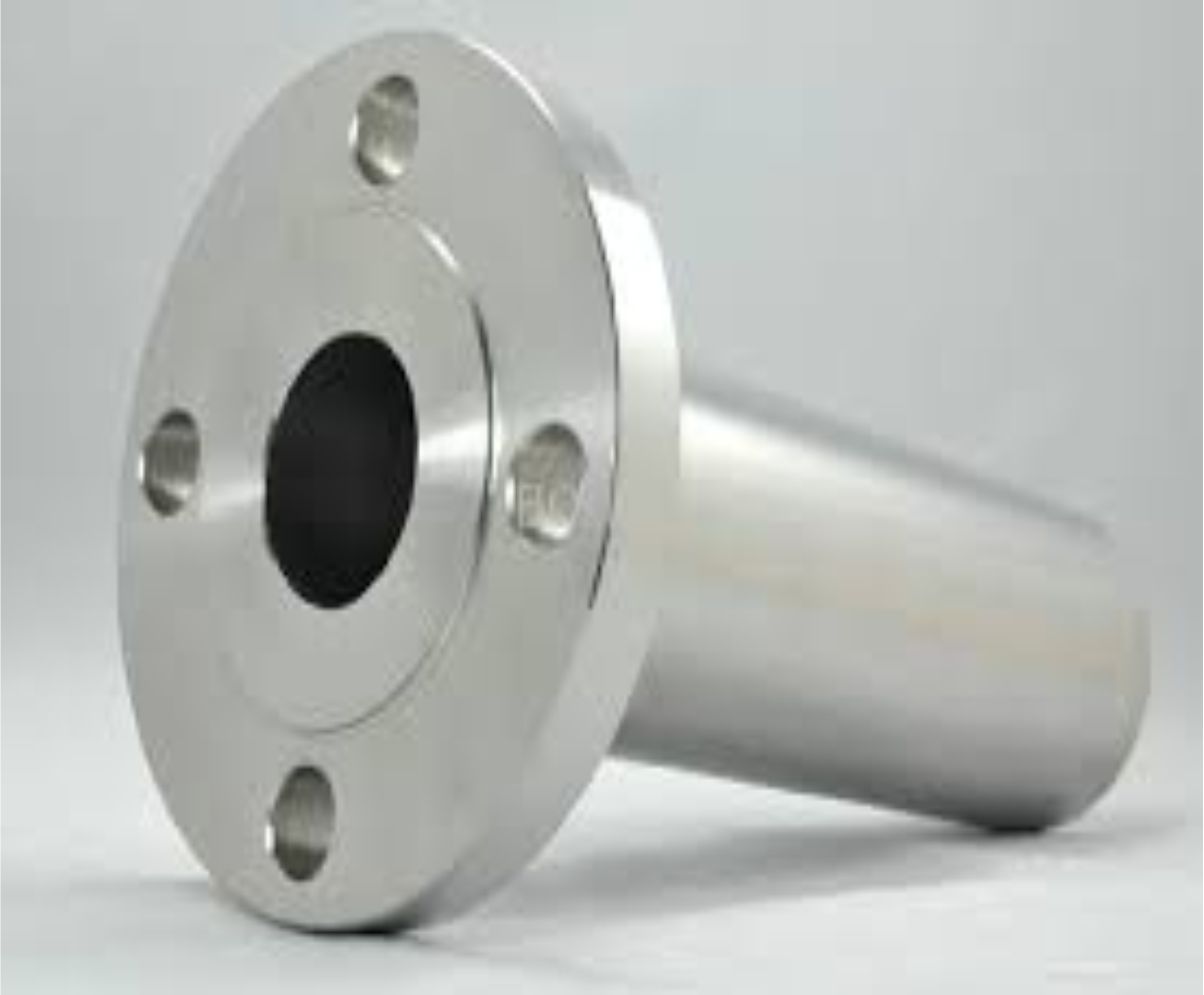

Long Weld Neck Flange

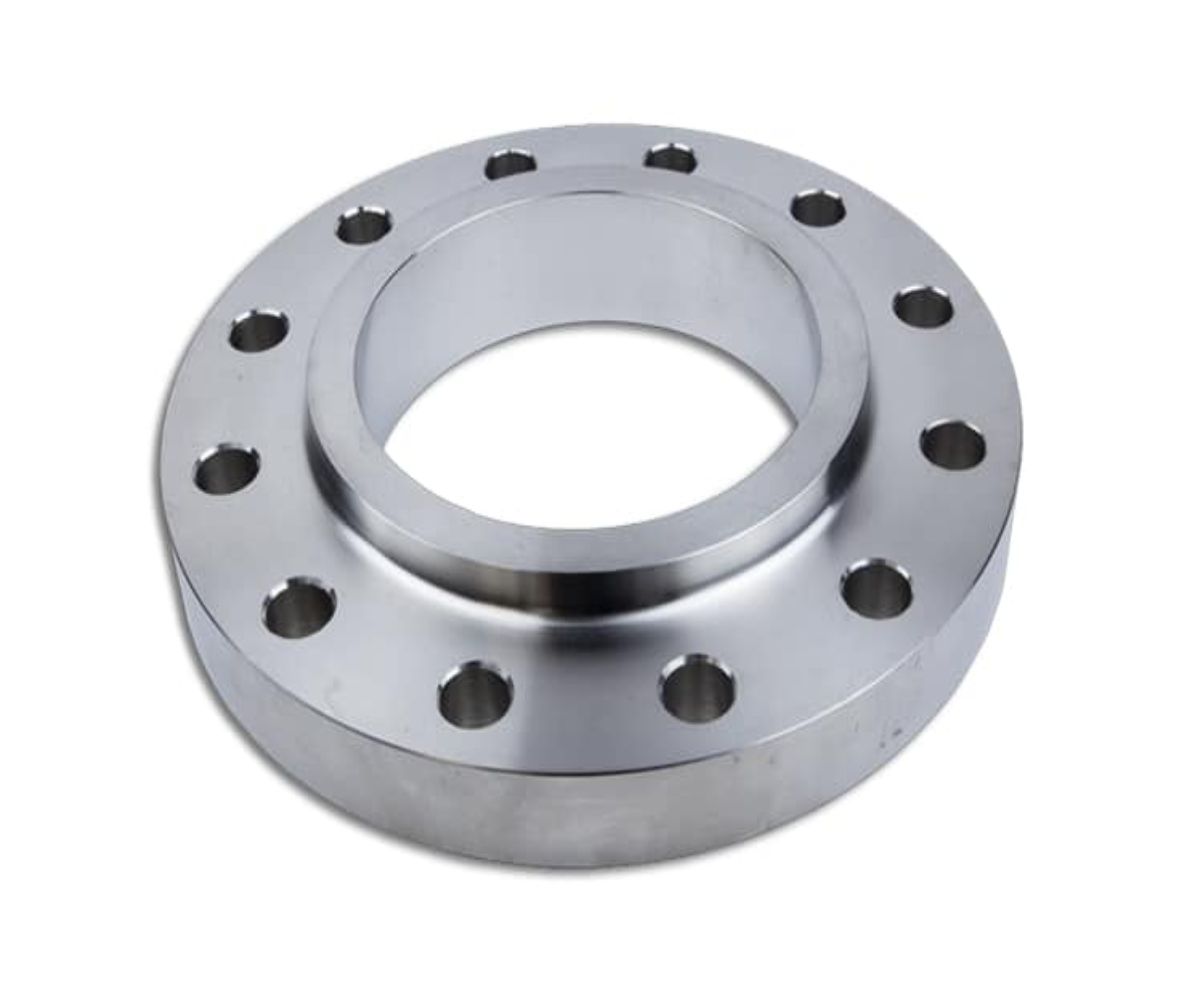

Slip On Flange

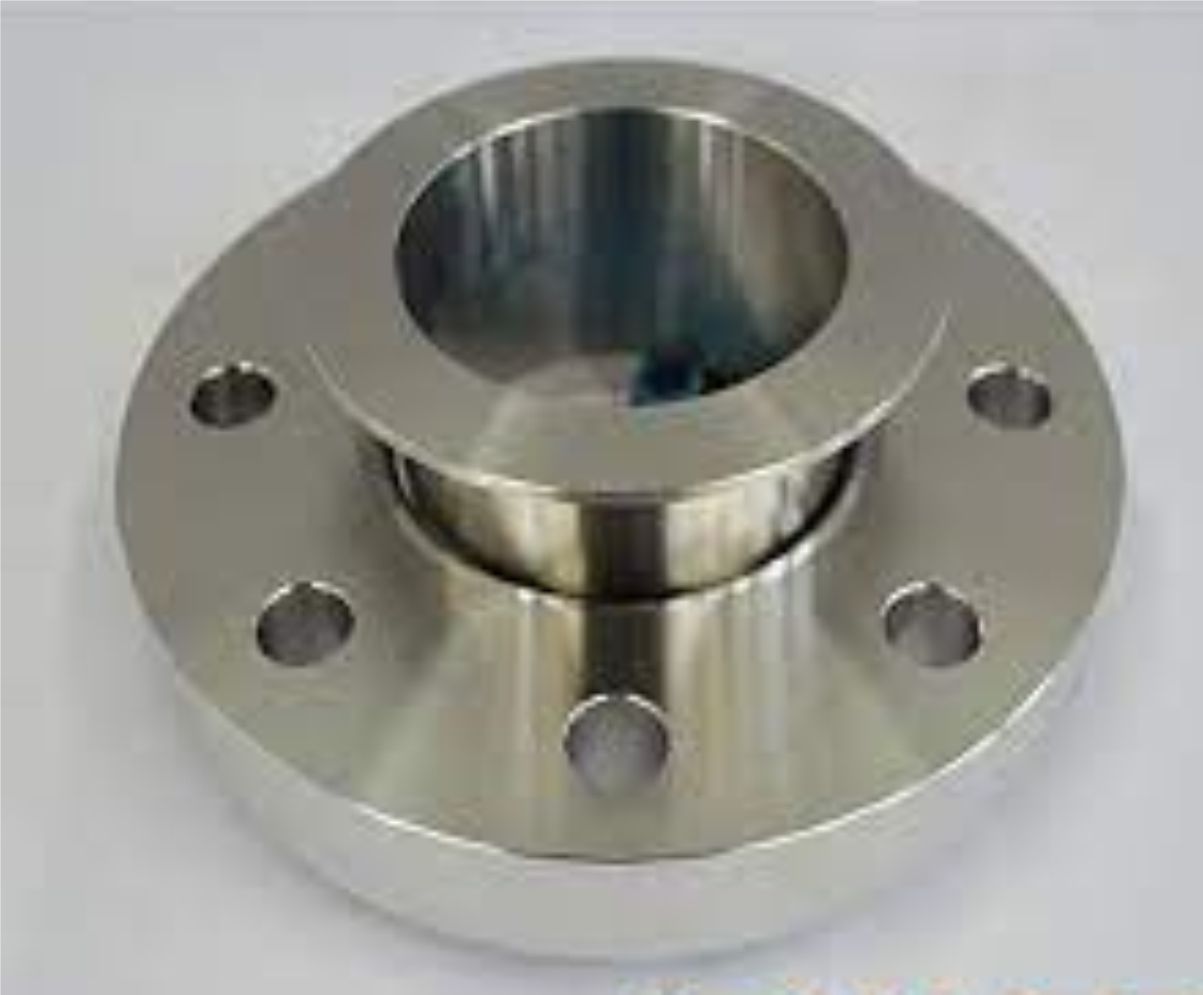

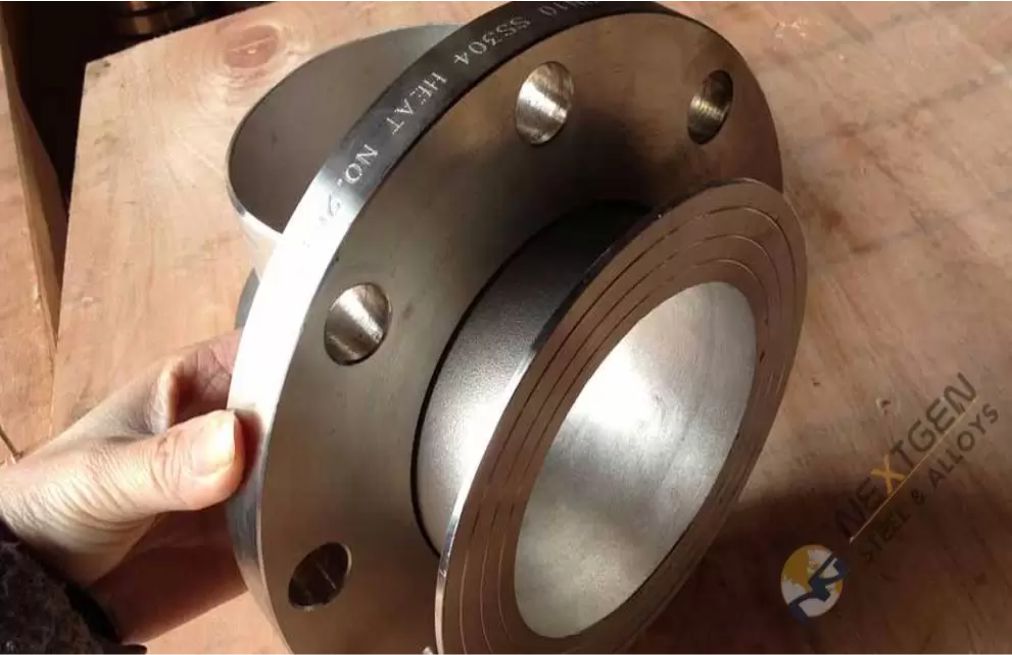

Lap Joint Flange

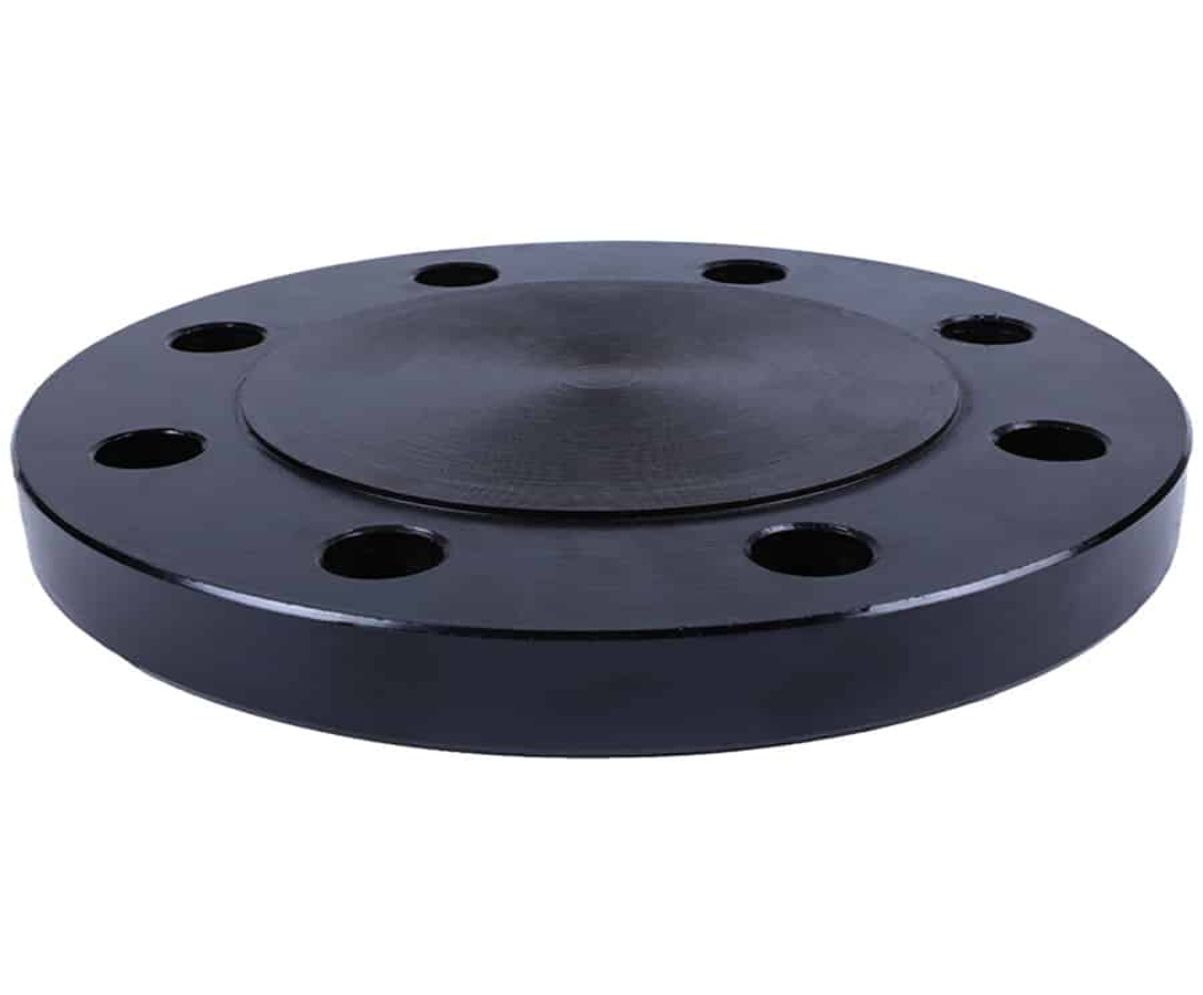

Blind Flange
